Differences in node selection states (Read 1314 times)

koichi_satoh YaBB Newbies Offline I Love MindFusion! Posts: 25 Joined: Nov 30^th, 2023	Differences in node selection states Jul 8^th, 2024 at 6:29am	Print Post

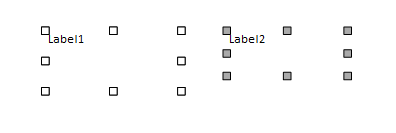

	When multiple nodes are selected, there are two selection states, as shown in the attached image. In the image below, Label1 has white handles. In the image below, Label2 has gray handles. Is it possible to eliminate this difference? Also, is it possible to programmatically distinguish the difference between these two selection states?

	IP Logged

Slavcho YaBB Moderator Offline tech.support Posts: 3435 Joined: Oct 19^th, 2005	Re: Differences in node selection states Reply #1 - Jul 8^th, 2024 at 8:39am	Print Post
	White handles are for diagram.ActiveItem. This can be useful to distinguish one of the nodes in the selection as alignment target, or for application commands such as make same size / color / etc. You can change the handle brushes by setting properties of diagram.ActiveItemHandlesStyle and diagram.SelectedItemHandlesStyle. Regards, Slavcho Mindfusion


	IP Logged

koichi_satoh YaBB Newbies Offline I Love MindFusion! Posts: 25 Joined: Nov 30^th, 2023	Re: Differences in node selection states Reply #2 - Jul 8^th, 2024 at 11:13am	Print Post
	Understood. Thank you very much.


	IP Logged
